oem Dahua

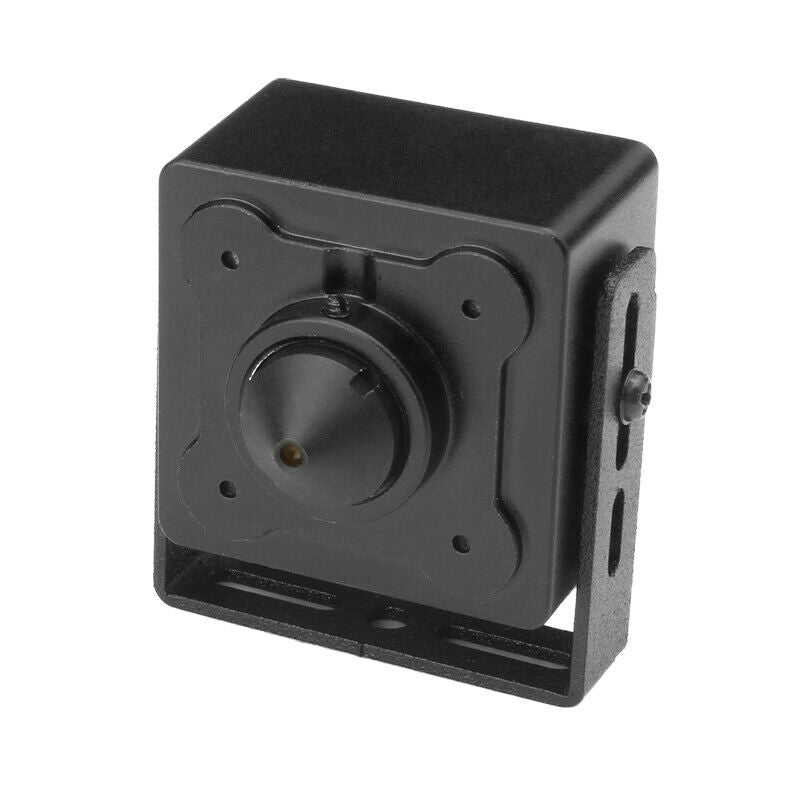

Mini telecamera pinhole 1mp IP ottica fissa 3.6mm Dahua oem IPC-HUM4001P-0360B

Mini telecamera pinhole 1mp IP ottica fissa 3.6mm Dahua oem IPC-HUM4001P-0360B

Prezzo di listino €189,00
Prezzo di listino Prezzo scontato €189,00
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.

Risoluzione massima: 1920x1080

Modello: pinhole

Marca: oem Dahua

Numero di telecamere incluse: 1

Tipo: Telecamera-spia nascosta

MPN: VSPINHOLE3.6

Rapporto di contrasto: 400:1

Contattaci per l'acquisto di quantità maggiori rispetto alla disponibilità.

Caratteristiche della telecamera:

  • Streaming fino a HD 1080p a 25 fps
  • Obiettivo fisso da 2,8 mm con campo visivo di 105 °
  • True WDR (120 dB)
  • Auto elettronica giorno / notte e riduzione del rumore digitale 2D
  • Custodia stenopeica discreta per videosorveglianza nascosta
  • Funzioni IVS tra cui rilevamento del movimento, tripwire e intrusione


Specifications

Camera
Image Sensor
1/2.7” 2.0 Megapixel Progressive Scan CMOS
Max. Resolution
2.0 Megapixel
Effective Pixels
1920 (H) x 1080 (V)
RAM / ROM
256MB / 128MB
Ultra Low Light Colour
Yes
Min Illumination
Colour: F2.4 0.007lx (1/3s), 0.04lx (1/30s) B&W: F2.4 0.004lx (1/3s), 0.02lx (1/30s)
S/N Ratio
>50dB
Infrared
No
Infrared System
N/A
Lens
Lens Type
Fixed
Lens / Iris
2.8mm F2.4 Fixed lens
Field of View
Horizontal: 105°, Vertical: 60°
Focus
Fixed
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
63m
Observe (63px/m)
25m
Recognise (125px/m)
13m
Identify (250px/m)
6m
Video
Resolution
1080p (1920 x 1080) to CIF (352 x 288)
Frame Rate (Main)
1080p (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1~14fps)
Video Compression
H.265 / H.264 / H.264B / H.264H / MJPEG (sub stream)
Bit Rate
H.265: 12K~6400Kbps/ H.264: 32K~8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (Electronic) / Colour / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto/ Natural/ Street Lamp/ Outdoor/ Manual
Gain Control
Auto/ Manual
Noise Reduction
3D DNR
Picture Control
IVS
IVS
Yes
Intelligent Functions
Tripwire, Intrusion, Abandoned/Missing Object, Face Detection. Privacy Masking (4 Zone), Motion Detection (4 Zone), Region of Interest (4 Zone)
Network
Ethernet
RJ45 (10/100 Base-T)
Protocol
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour
Streaming Method
Unicast / Multicast
Max. User Access
10/20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
1 Input, 1 Output
Alarm Interface
N/A
RS485
N/A
Edge Storage
NAS/ Local PC
Interoperability
ONVIF Profile S/ API
Environmental
Power Supply
12VDC / Non POE
Power Consumption
<1.5W
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection
N/A
Weather Resistance
No
Vandal Resistance
N/A
Series
Pinhole Series
Camera Type
Pinhole
Housing
Metal
Pan/Tilt/Rotation
N/A
Tri-Axis Mounting
No
ePoE
No
Dimensions
44.9 x 57.7 x 34.35mm
Net Weight
0.102kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
82 mm
Height
85 mm
Depth
80 mm
Weight
0.30 kg
