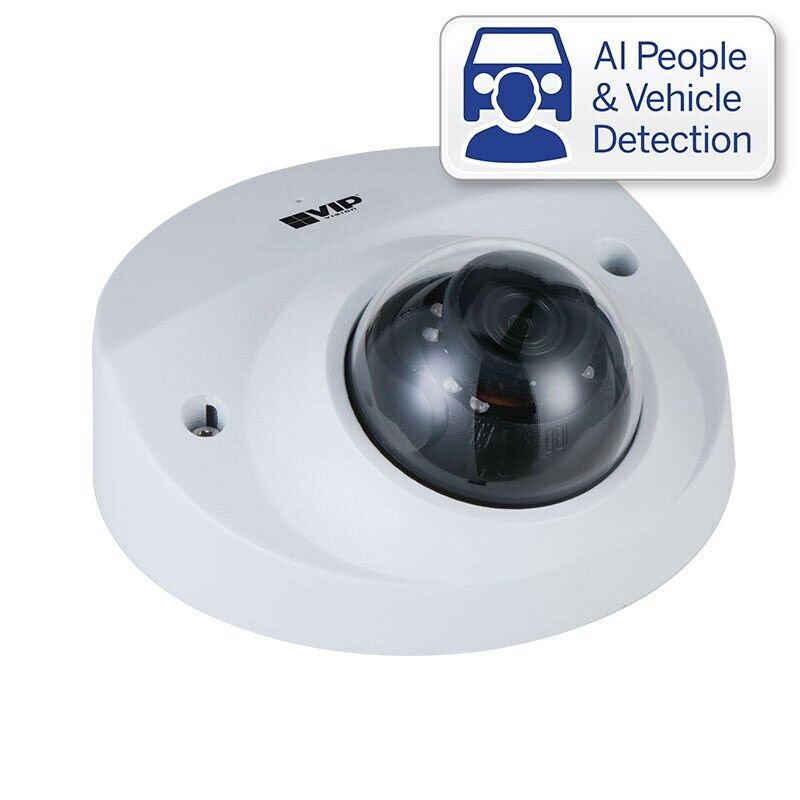

Telecamera TVCC Dome Wedge IP 4MP con intelligenza artificiale IA OEMdahua

Telecamera TVCC Dome Wedge IP 4MP con intelligenza artificiale IA OEMdahua

€148,00
€148,00
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.

Tipo: Videocamera di sorveglianza

Marca: - Senza marca/Generico -

Modello: dome wedge

Caratteristiche:
  • Streaming fino a 4,0 MP (2688 x 1520) a 25 fps
  • Obiettivo fisso da 2,8 mm con angolo di visione di 103°
  • Codifica H.265 per un'archiviazione e uno streaming efficienti
  • Portata a infrarossi fino a 50 m; giorno/notte reale (ICR automatico)
  • Slot MicroSD per la registrazione a bordo fino a 256 GB
  • Protezione perimetrale basata sull'intelligenza artificiale e rilevamento intelligente del movimento (SMD+)
  • Imposta il rilevamento di persone e veicoli AI, ricevi avvisi e cerca filmati per persone o veicoli
  • Compensazione posteriore/alta luce e WDR reale (120 dB)
  • Riduzione del rumore digitale 3D e bilanciamento automatico del bianco
  • Custodia con grado di protezione IP67 per uso esterno
  • Custodia in metallo antivandalo IK10

Specifications

Camera
Image Sensor
1/3’’ 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
512MB / 128MB
Min Illumination
0.005 Lux/F1.6 (Color)
S/N Ratio
N/A
Infrared System
8 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Fixed
Lens / Iris
2.8mm Fixed Focal Lens with Fixed Iris
Field of View
Horizontal: 103°, Vertical: 55°
Focus
Auto Focus / 0.9m Min. Focus Distance
DORI
Detect (25px/m)
56m
Observe (63px/m)
22m
Recognise (125px/m)
11m
Identify (250px/m)
6m
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264H / H.264B / MJPEG
Bit Rate
H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
Yes
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°) (Support 90°/270° with 2.0MP resolution)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
N/A
Intelligent Search
Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; AAC
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP / SFTP
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<5.7W
Operating Conditions
-40°C ~ +60°C / ≤95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Series
Professional AI Series
Camera Type
Wedge Dome
Housing
Metal
Pan/Tilt/Rotation
Pan: -30° ~ 30°, Tilt: 0° ~ 80°, Rotation: 0° ~ 360°
ePoE
No
Dimensions
Ø108.9mm x 55mm
Net Weight
0.38kg
Other
Category
Network Surveillance
Warranty (Years)
4
