Dahua OEM

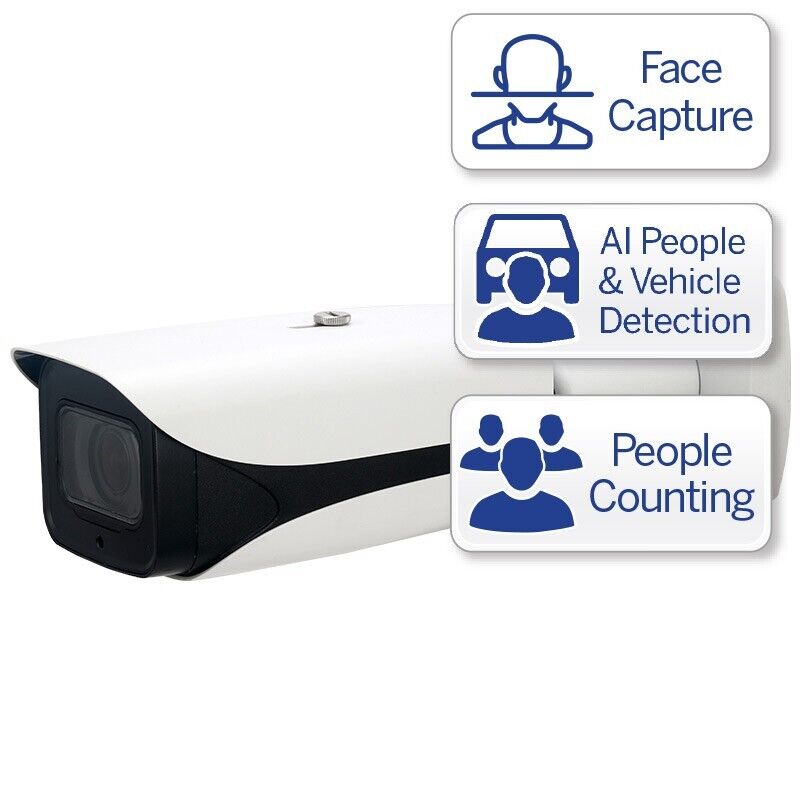

Telecamera TVCC bullet IP 4MP motorizzata con IA intelligenza artificiale OEMdah

Telecamera TVCC bullet IP 4MP motorizzata con IA intelligenza artificiale OEMdah

Prezzo di listino €428,00
Prezzo di listino Prezzo scontato €428,00
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.

Tipo: Videocamera di sorveglianza

Marca: Dahua OEM

Modello: bullet

Caratteristiche della fotocamera:
• Streaming fino a 4,0 MP (2688 x 1520) a 25 fps
• Obiettivo motorizzato da 2,7 ~ 12 mm con angoli di visione di 114 ~ 47°
• Codifica H.265 per un'archiviazione e uno streaming efficienti
• Portata a infrarossi di 50 m; true day/night (auto ICR)
• Compensazione retro/alte luci e WDR reale (140dB)
• Slot MicroSD per la registrazione a bordo fino a 256 GB
• Rilevamento e acquisizione interna dei volti per estendere il riconoscimento
• Protezione perimetrale per identificare persone e veicoli
• Combina la protezione perimetrale con Tripwire/Intrusion per prevenire falsi allarmi,
- Conteggio intelligente delle persone potenziato dall'intelligenza artificiale per la gestione della capacità di vendita al dettaglio e il controllo del flusso
- Estendi PoE fino a 800 m (richiede NVR/switch ePoE)
- Custodia con grado di protezione IP67 per uso esterno
- Riscaldatore incorporato per evitare la formazione di condensa in ambienti freddi

Specifications

Camera
Image Sensor
1/1.8’’ 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
1GB / 128MB
Min Illumination
0.003 Lux / F1.8 (Color)
S/N Ratio
> 50dB
Infrared System
4 x Infrared LED, 50m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 12.0mm F1.8 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 114°~47°, Vertical: 62°~26°
Focus
Auto Focus / 1.2m Min. Focus Distance
DORI
Detect (25px/m)
58m (wide) / 131m (tele)
Observe (63px/m)
23m (wide) / 52m (tele)
Recognise (125px/m)
12m (wide) / 26m (tele)
Identify (250px/m)
6m (wide) / 13m (tele)
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 25fps) / 3.0MP (1 ~ 25fps) / 2.0MP (1 ~ 50fps)
Frame Rate (Sub)
D1 (1 ~ 50fps)
Frame Rate (Third)
1080p (1 ~ 16fps)
Video Compression
H.265, H.264, H.264B, H.264H, MJPEG
Bit Rate
H.264: 32Kbps ~ 8192Kbps / H.265: 19Kbps ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (140dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Face Detection
Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR (16 total)
Face Attributes
Age, Gender, Expression, Glasses, Face Mask, Facial Hair
People Counting
Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
Heat Map
Yes
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port) / 1 output (RCA Port) / Audio Compression: G.711a; G.711Mu; G726; G.723
Alarm Interface
2 channel in: 5mA 5VDC / 1 channel out: 300mA 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC (±30%) / PoE (802.3af) / ePoE
Power Consumption
<15.2W (Heater on)
Operating Conditions
-40°C ~ +60°C (Heater on), ≤95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Series
Ultimate AI Series
Camera Type
Bullet
Housing
Metal, Plastic
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°
ePoE
Yes
Dimensions
273mm x 95mm x 95mm
Net Weight
1.11kg
Other
Category
Network Surveillance
Warranty (Years)
4
