Telecamera videosorveglianza bullet ip 4mp motorizzata wdr ir 60m OEMdahua

Telecamera videosorveglianza bullet ip 4mp motorizzata wdr ir 60m OEMdahua

€169,00
€169,00
Sale Sold out
Tax included. Shipping calculated at checkout.

Modello: bullet

Marca: oem Dahua

Tipo: Videocamera di sorveglianza

Contattaci per l'acquisto di quantità maggiori rispetto alla disponibilità.

Caratteristiche della telecamera:

  • Streaming fino a 4,0 MP (2688 x 1520) a 20 fps
  • Obiettivo varifocale motorizzato 2,7 ~ 13,5 mm con diaframma fisso
  • Campo visivo 104 ° ~ 28 ° (H) - 55 ° ~ 16 ° (V) con zoom ottico 5x
  • Codifica H.265 per archiviazione e streaming efficienti
  • Infrarossi fino a 60 m; true day/night (auto ICR)
  • Slot MicroSD per la registrazione a bordo fino a 128 GB
  • Compensazione posteriore/evidenziazione e vero WDR (120dB)
  • Riduzione del rumore digitale 3D e bilanciamento automatico del bianco
  • Custodia con grado di protezione IP67 per uso esterno
  • Conformità ONVIF, PSIA e CGI


Specifications

Camera
Image Sensor
1/3’’ 4.0MP Progressive Scan Exmor CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
512MB / 32MB
Ultra Low Light Colour
No
Min Illumination
0.03 Lux/F1.4 (Color), 0 Lux/F1.4 (IR on)
S/N Ratio
> 45dB
Infrared
Yes
Infrared System
4 x Infrared LED, 60m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 13.5mm F1.4 Motorised Varifocal Lens with Fixed Iris
Field of View
Horizontal: 104°~28°, Vertical: 55°~16° (5x Optical Zoom)
Focus
Auto Focus / 0.2m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
64m (wide) / 222m (tele)
Observe (63px/m)
26m (wide) / 89m (tele)
Recognise (125px/m)
13m (wide) / 44m (tele)
Identify (250px/m)
6m (wide) / 22m (tele)
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 20fps) / 3.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.265 / H.264
Bit Rate
H.265: 12 ~ 8448Kbps / H.264: 32 ~ 10240Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS
No
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
10 Users / 20 Users
RTMP Support
No
Interface
Video Interface
N/A
Audio Interface
N/A
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability
ONVIF / PSIA / CGI
Environmental
Power Supply
12VDC / PoE (802.3af) (Class 0)
Power Consumption
<13W
Operating Conditions
-30° ~ +60° C / Less than 95% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Professional Series
Camera Type
Bullet
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360 °; Tilt: 0° ~ 90°; Rotation: 0° ~ 360°
Tri-Axis Mounting
No
ePoE
No

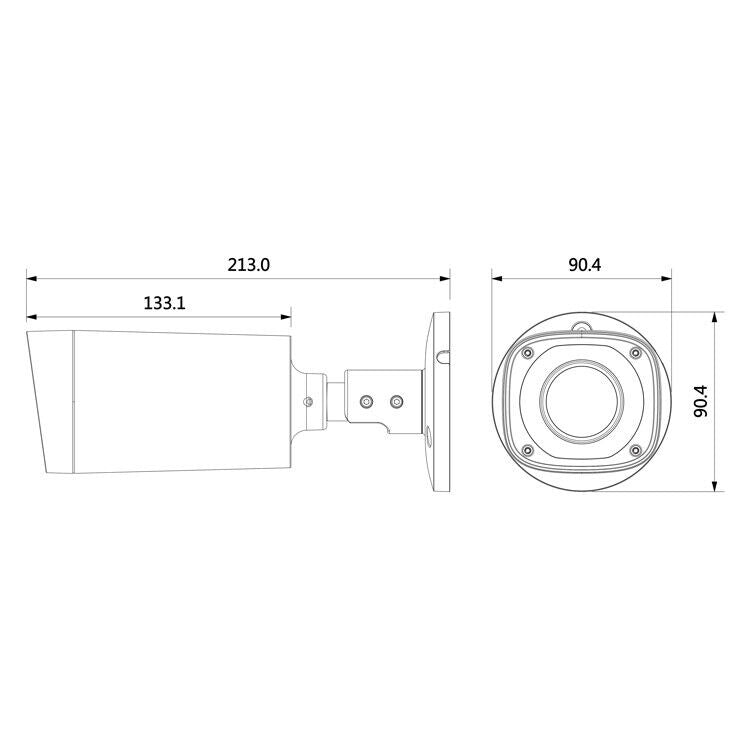

Dimensions
Ø72mm x 80mm x 213mm
Net Weight
0.685kg
Warranty (Years)
4

Shipping Weight and Dimensions

Includes product packaging

Width
300 mm
Height
130 mm
Depth
150 mm
Weight
0.98 kg
