OEM DAHUA

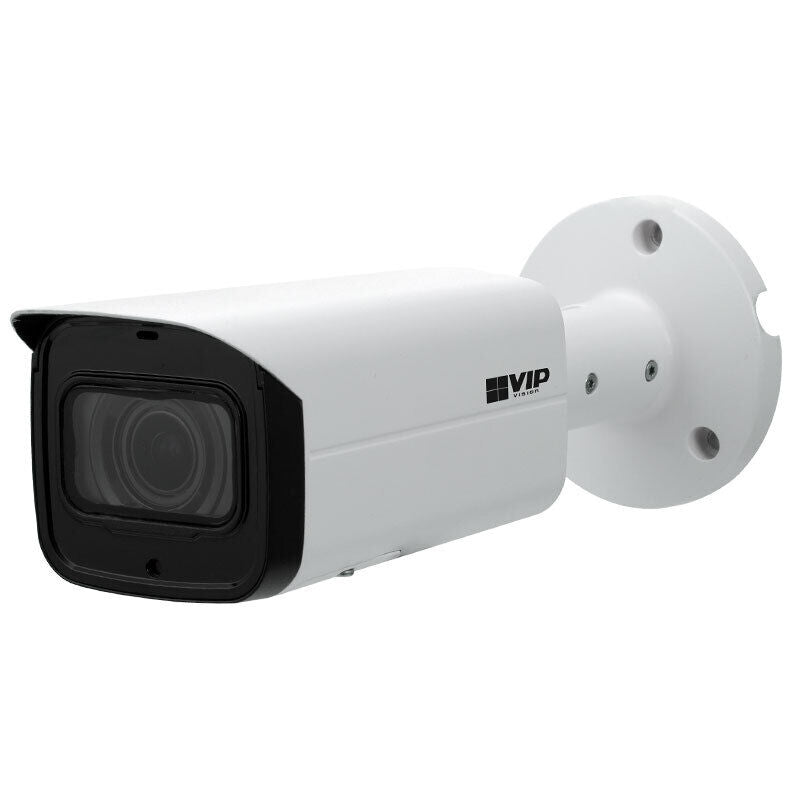

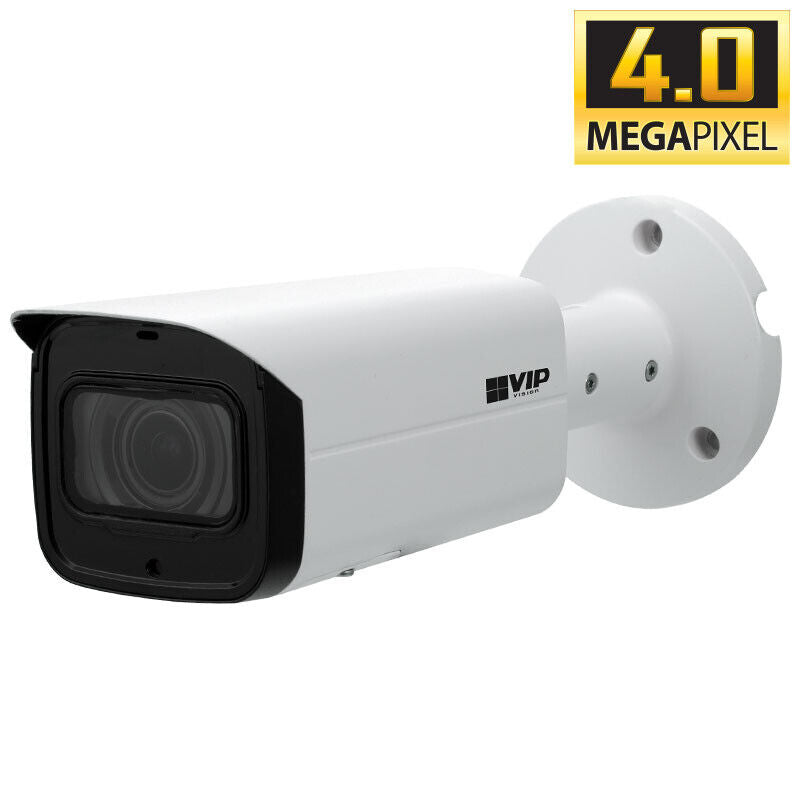

Telecamera TVCC videosorveglianza bullet IP 4MP ottica motorizzata OEMdahua
Telecamera TVCC videosorveglianza bullet IP 4MP ottica motorizzata OEMdahua
Regular price
€189,00
Regular price
Sale price
€189,00
Unit price
/
per
Risoluzione massima: 2688x1520
Modello: IPC-HFW2431T-ZAS-S2
Tecnologia di sorveglianza: IP/Network
Marca: OEM DAHUA
Tipo: Telecamere Bullet
Posizione: Esterno e interno
MPN: VSIPP-4BIRMG
Contattaci per l'acquisto di quantità maggiori rispetto alla disponibilità.Caratteristiche della telecamera:• Streaming fino a 4,0 MP (2688 x 1520) a 20 fps
• Obiettivo motorizzato 2,7 ~ 13,5 mm con angoli di visione di 104 ~ 27 °
• Codifica H.265 per archiviazione e streaming efficienti
• Infrarossi fino a 60 m; true day/night (auto ICR)
• Slot MicroSD per la registrazione a bordo fino a 256 GB
• Analisi IVS, inclusi tripwire e intrusione
• Slot MicroSD per la registrazione a bordo fino a 256 GB
• Analisi IVS, inclusi tripwire e intrusione
• Compensazione posteriore/evidenziazione e true WDR (120dB)
• Riduzione del rumore digitale 3D e bilanciamento automatico del bianco
• Riduzione del rumore digitale 3D e bilanciamento automatico del bianco
• Ingresso/uscita audio a 1 canale
• Ingresso/uscita allarme a 1 canale
• Alloggiamento con grado di protezione meteo IP67 per uso esterno
Specifications
Camera
Image Sensor
1/3’’ 4.0MP Progressive Scan CMOS
Max. Resolution
4.0 Megapixel
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
128MB / 128MB
Ultra Low Light Colour
Yes
Min Illumination
0.008 Lux/F1.5 (Color)
S/N Ratio
> 50dB
Infrared
Yes
Infrared System
4 x Infrared LED, 60m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris
Field of View
Horizontal: 104°~27°, Vertical: 55°~15° (5x Optical Zoom)
Focus
Auto Focus / 0.8m Min. Focus Distance
DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m)
64m (wide) / 220m (tele)
Observe (63px/m)
26m (wide) / 88m (tele)
Recognise (125px/m)
13m (wide) / 44m (tele)
Identify (250px/m)
6m (wide) / 22m (tele)
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 20fps) / 3.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
N/A
Video Compression
H.265 / H.264 / H.264B / MJPEG
Bit Rate
H.265: 12 ~ 6144Kbps / H.264: 32 ~ 6144Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
No
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0°, 90°, 180°, 270°)
IVS
IVS
Yes
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Tripwire, Intrusion
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
RTMP Support
NA
Interface
Video Interface
N/A
Audio Interface
1 input, 1 Output / Audio Compression - G.711a; G.711Mu; G726; AAC
Alarm Interface
1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<9.6W
Operating Conditions
-30°C ~ +60°C / ≤95% RH
Ingress Protection
IP67
Weather Resistance
Yes
Vandal Resistance
N/A
Series
Professional Series
Camera Type
Bullet
Housing
Metal
Pan/Tilt/Rotation
Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360°
Tri-Axis Mounting
Yes
ePoE
N/A
Dimensions
Ø90mm x 244mm
Net Weight
0.90kg
Warranty (Years)
4
Shipping Weight and Dimensions
Includes product packaging
Width
79 mm
Height
244 mm
Depth
76 mm
Weight
1.08 kg
